Advanced Features and Applications of Tilting-Pad Journal Bearings

As fluid-flow bearings, tilting-pad journal bearings, mainly provide radial loads and can endure significant impact and unbalanced loads. Usually, with more than three evenly distributed pads on a base, tilting-pad journal bearings often designed with an odd number of pads. Even if with varied load direction, the pad center or between two can adjacent pads. The position of the pad support point adjusts according to the load and rotational direction. When aligned with the pad center, the bearings allow rotate bidirectionally, but with lower capacity than unidirectional bearings. Higher loads happen when the pad width near the shaft diameter.

Tilting-pad journal bearings are featured for self-acting in the fluid film bearings family. Unlike other bearings, tilting-pad journal bearings feature many single pads (usually four or five), each free to oscillate about a pivot. The tilting movement of these pads adapts dynamically with rotor speed and radial load, optimizing the oil wedge at each pad under load. This inherent adjustability guarantee stability and dependability, making tilting-pad journal bearings well-suited for high-speed applications like steam, gas, and water turbines,and generators in power generation.

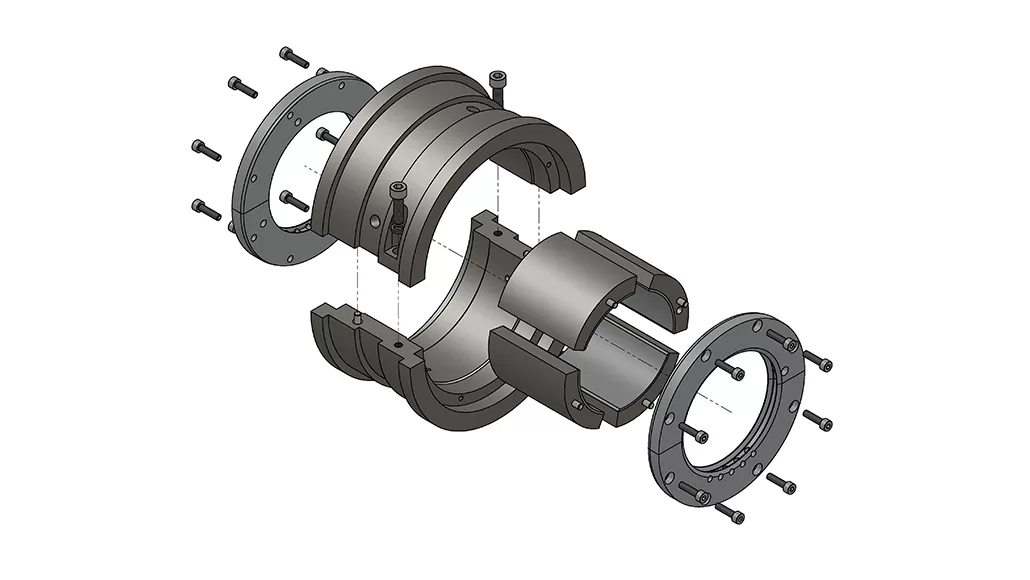

Each tilting-pad journal bearings contains a set of pads housed in a carrier ring or retainer. These pads tilt independently to establish a hydrodynamic film that supports the rotor. The design distributes the load evenly across the pads and accommodates any misalignment between the bearing and the collar. However, although with some advantages, tilting-pad journal bearings are intricate and expensive to produce, requiring careful design processes to achieve peal performance and longevity.
