Gearbox Bearings Troubleshooting Checklist

Gearbox bearings play a critical role in ensuring the smooth operation of machinery, and any issues with these bearings can lead to significant downtime and costly repairs. Proper maintenance and early detection of bearing problems are crucial to prevent more severe damage to the gearbox and other components. This checklist will guide you through common issues related to gearbox bearings and how to troubleshoot them effectively. By following this list, you can identify problems early and take corrective actions to keep your machinery running smoothly.

1. Unusual Noise or Vibration

One of the most common indicators of gearbox bearing issues is abnormal noise or vibration. This can be caused by several problems, including misalignment, insufficient lubrication, or bearing damage.

Possible Causes:

• Worn or damaged bearing elements (balls, rollers, raceways).

• Incorrect bearing alignment within the gearbox.

• Contaminated or insufficient lubrication.

• Cracked or chipped bearing surfaces.

• Excessive load on the bearing, leading to overload conditions.

Action Steps:

• Listen for any grinding, clicking, or whirring noises that indicate bearing wear.

• Use a vibration analysis tool to measure vibration frequency and amplitude, which can help pinpoint the issue.

• Ensure the gearbox is properly aligned and check if the shaft is misaligned with the bearing.

• Check the lubrication levels and quality, and replace it if necessary.

• Inspect the bearings for physical damage or signs of wear, such as pitting or discoloration.

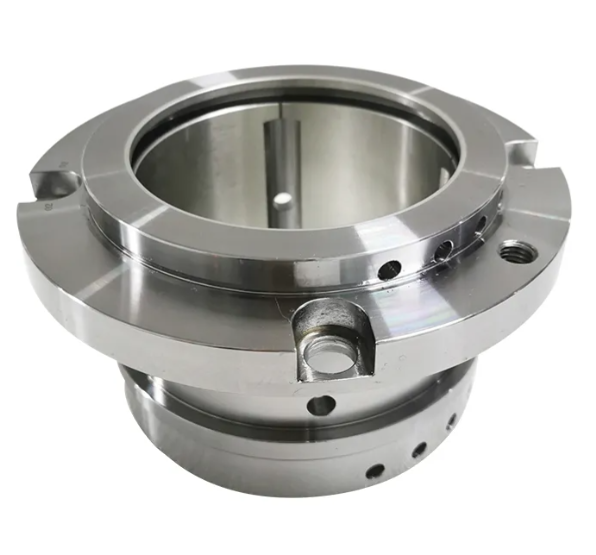

Gearbox Bearings

2. Excessive Heat Generation

Excessive heat generation around the bearings can indicate problems with lubrication, misalignment, or overloading. Heat can cause rapid wear and may result in bearing failure if not addressed.

Possible Causes:

• Insufficient or incorrect lubrication.

• Incorrect bearing installation or alignment.

• Overloading or operating the gearbox beyond its rated capacity.

• Friction from contamination in the bearings.

• Excessive axial or radial load on the bearing.

Action Steps:

• Measure the bearing housing temperature using an infrared thermometer or thermocouple.

• If the temperature is higher than normal, check the lubrication and make sure the correct type and amount of lubricant are used.

• Inspect the alignment of the gearbox and bearings, ensuring proper shaft positioning.

• Check for overload conditions and make sure the gearbox operates within its specified limits.

• Examine for contamination (dirt, water, or foreign particles) in the bearing assembly, which can increase friction and heat.

3. Bearing Wear or Pitting

Over time, bearings can experience wear, which can lead to surface damage such as pitting, flaking, or cracking. This wear may cause an increase in vibration, noise, and ultimately gearbox failure.

Possible Causes:

• Inadequate lubrication causing increased friction.

• Contaminated lubrication due to dirt or water ingress.

• Excessive or irregular loads on the bearing.

• Corrosion or chemical exposure damaging the bearing surface.

• Fatigue from prolonged operation at high speeds or temperatures.

Action Steps:

• Inspect the bearing raceways and rolling elements for signs of pitting or other surface damage.

• Check for proper lubrication and replace any contaminated or degraded oil or grease.

• Verify the operational load does not exceed the bearing’s rated capacity.

• Ensure the bearings are free from rust, corrosion, or chemical exposure.

• If pitting is present, replace the damaged bearings immediately to prevent further damage.

4. Lubrication Issues

Lubrication is crucial for bearing performance, and issues like contamination, insufficient lubrication, or the use of incorrect lubricants can lead to bearing failure.

Possible Causes:

• Wrong lubricant type or grade used in the gearbox.

• Insufficient lubricant due to leakage or poor maintenance.

• Contaminated lubricant from dirt, water, or metal particles.

• Lubricant degradation due to high temperatures or extended service life.

• Poor lubrication technique leading to air pockets or uneven distribution.

Action Steps:

• Check the lubrication level and ensure the correct amount is being applied to the bearing assembly.

• Verify that the correct type of lubricant (oil or grease) is used according to the manufacturer’s specifications.

• Inspect the lubricant for contamination and replace it if necessary.

• Replace degraded or old lubricants that may have lost their effectiveness due to temperature or time.

• Ensure that the lubrication system (oil pumps, grease distributors, etc.) is functioning correctly.

5. Misalignment and Shaft Distortion

Misalignment of the gearbox shaft and bearings can cause increased stress on the bearings, leading to premature wear and damage. Shaft distortion due to incorrect assembly or excessive force can also contribute to bearing failure.

Possible Causes:

• Improper installation or assembly of the gearbox.

• Worn or bent shafts that cause misalignment with the bearings.

• Excessive loading or uneven distribution of force on the bearings.

• Damage to the bearing housing or mounting surface.

Action Steps:

• Check for shaft misalignment using tools such as a dial indicator or laser alignment tool.

• Inspect the shaft for any signs of bending or wear that could affect alignment.

• Examine the bearing housing for signs of damage or wear.

• If necessary, re-align the shaft and bearings to ensure proper installation and function.

6. Bearing Seal Failures

Bearings often have seals designed to protect them from contaminants such as dirt, dust, and moisture. When these seals fail, contamination can damage the bearing and reduce its lifespan.

Possible Causes:

• Excessive temperature or pressure leading to seal degradation.

• Mechanical damage to the seal due to impact or improper handling.

• Improper installation or incorrect seal type used in the bearing.

Action Steps:

• Inspect the seals for any visible damage, cracks, or wear.

• Check the seal material for compatibility with operating temperatures and conditions.

• Ensure proper installation of the seals, and replace any that are damaged or worn out.

Conclusion

Regular maintenance and prompt troubleshooting of gearbox bearings are essential for ensuring the longevity and efficiency of your machinery. By following the steps outlined in this checklist, you can identify potential bearing problems early, minimize downtime, and reduce the risk of catastrophic gearbox failure. If you encounter issues that are beyond simple troubleshooting, it’s advisable to consult with a professional or gearbox manufacturer for further assistance.
