Journal Bearing Vs Roller Bearing: How To Choose?

When it comes to selecting the right bearing for your machinery or equipment, understanding the differences between journal bearings and roller bearings is essential. Both types of bearings serve the same basic function—reducing friction between moving parts—but they operate in very different ways. In this guide, we’ll compare journal bearings and roller bearings, highlight their advantages, and help you make an informed decision on which type is right for your application.

1. What Are Journal Bearings?

Journal bearings are a type of bearing that supports a rotating shaft. Unlike roller bearings, which have rolling elements like balls or rollers, journal bearings are made of a smooth surface that supports the shaft through a layer of lubricant. The key component in a journal bearing is the “journal,” which refers to the shaft or the rotating part that sits inside the bearing. This type of bearing works on the principle of fluid film lubrication, where a thin layer of lubricant between the bearing and the shaft prevents metal-to-metal contact.

Journal bearings are typically used in applications with high loads and low to moderate speeds, such as engines, turbines, and heavy machinery. These bearings are relatively simple in design and offer a smooth surface for the shaft to rotate within. However, they require a continuous supply of lubricant to prevent wear and damage to the surfaces.

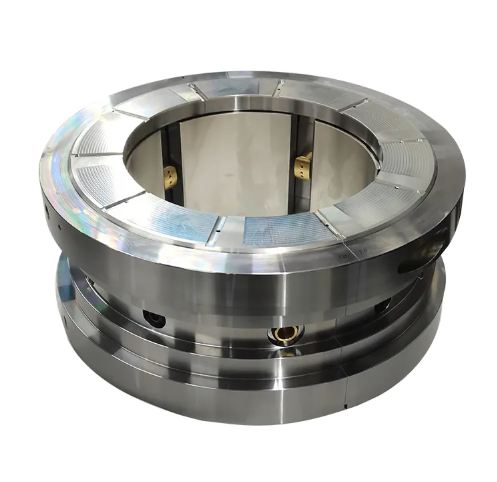

Combined Journal Bearings

2. What Are Roller Bearings?

Roller bearings, on the other hand, contain rolling elements such as cylindrical rollers, spherical rollers, or tapered rollers that rotate within a cage or race. These rolling elements carry the load and reduce friction by rolling rather than sliding. Roller bearings are designed to handle both radial and axial loads and are highly effective in high-speed and precision applications.

Roller bearings are used in a wide variety of applications, including automotive components, industrial machinery, and robotics, where precise motion control and high performance are required. They come in several different designs, including cylindrical roller bearings, spherical roller bearings, and tapered roller bearings, each suited for specific load conditions and directional requirements.

3. Key Differences Between Journal Bearings and Roller Bearings

While both journal bearings and roller bearings reduce friction and wear, their design, application, and performance characteristics differ significantly. Here are the key differences:

• Design: Journal bearings consist of a smooth, friction-reducing surface, while roller bearings use rolling elements such as balls or rollers.

• Load Capacity: Journal bearings are often better suited for handling heavy radial loads and are effective in low to moderate speed applications. Roller bearings are better for handling both radial and axial loads at higher speeds.

• Speed: Journal bearings are generally better suited for low-speed applications, whereas roller bearings excel in high-speed applications due to their rolling motion.

• Lubrication: Journal bearings require continuous lubrication to prevent wear, while roller bearings can operate with less lubrication due to the rolling elements that reduce friction.

• Wear and Tear: Journal bearings are prone to wear if the lubricant supply is interrupted, whereas roller bearings experience less wear as the rolling elements spread the load more evenly.

• Cost: Journal bearings are often less expensive to manufacture and maintain, making them a cost-effective solution for heavy-duty, low-speed applications. Roller bearings tend to be more expensive due to their complex design and higher performance capabilities.




4. When to Choose Journal Bearings?

Journal bearings are ideal for applications that involve heavy loads and relatively low rotational speeds. Some specific situations where journal bearings might be the best choice include:

• Heavy-duty machinery: Journal bearings are commonly used in large machinery, such as engines and turbines, where the load is distributed evenly, and there’s little risk of high-speed wear.

• High-load applications: If your application involves very heavy loads, journal bearings provide excellent load distribution, reducing the likelihood of deformation.

• Cost-sensitive applications: Journal bearings are often a more affordable option, especially for applications where the bearing doesn’t need to handle high speeds.

Journal bearings are best for low to moderate speed, high-load situations that require simplicity, cost-efficiency, and high durability when properly lubricated.

5. When to Choose Roller Bearings?

Roller bearings are better suited for high-performance applications that require precision, speed, and reliability. Here are some scenarios where roller bearings are the preferred choice:

• High-speed operations: If your application involves high rotational speeds, roller bearings are more efficient due to their rolling mechanism, which reduces friction.

• Applications with both radial and axial loads: Roller bearings are ideal for situations where both types of loads are encountered, such as in automotive wheel hubs or industrial machines.

• Precision equipment: For applications that require precise motion control, such as robotics or aerospace systems, roller bearings provide the necessary accuracy and durability.

• Longer service life: Roller bearings tend to last longer under normal conditions because the rolling elements distribute the load more evenly, reducing wear and tear.

Roller bearings are the best choice for applications where high-speed performance, load handling, and durability are critical.

6. Considerations for Choosing Between Journal and Roller Bearings

Choosing between journal bearings and roller bearings ultimately depends on the specific requirements of your application. Here are some key considerations to guide your decision:

• Speed: If your machinery operates at high speeds, roller bearings are the better option due to their reduced friction.

• Load Type: Consider whether your application experiences mainly radial loads (favoring journal bearings) or both radial and axial loads (favoring roller bearings).

• Lubrication: If you can maintain consistent lubrication, journal bearings may work well. However, if lubrication is a challenge, roller bearings can operate with less frequent lubrication.

• Durability: Roller bearings tend to last longer, especially under high-speed or high-precision applications. Journal bearings can be a cost-effective choice if durability is less of a concern.

• Cost: Journal bearings are generally more affordable, but roller bearings offer better performance for demanding applications.




7. Frequently Asked Questions (FAQs)

1. Can journal bearings handle high-speed applications?

No, journal bearings are typically designed for low to moderate-speed applications. They are not suitable for high-speed operations as the friction and heat generated can damage the bearing surfaces without sufficient lubrication.

2. Are roller bearings more expensive than journal bearings?

Yes, roller bearings are generally more expensive due to their complex design and higher performance capabilities, particularly for high-speed and precision applications.

3. Do roller bearings require more maintenance than journal bearings?

Roller bearings tend to require less frequent maintenance than journal bearings, as they distribute the load more evenly and are less prone to wear. However, they do require regular lubrication to ensure optimal performance.

4. Can journal bearings be used in high-load applications?

Yes, journal bearings are well-suited for high-load applications, particularly when the rotational speed is low. They provide excellent load distribution, making them ideal for heavy-duty machinery.

In summary, both journal bearings and roller bearings have unique advantages and are suited to different applications. Understanding your specific requirements—such as load type, speed, lubrication, and cost—will help you choose the right bearing for your machinery. Journal bearings are a great choice for low-speed, heavy-load applications, while roller bearings excel in high-speed, precision-demanding environments.
