Journal Bearing Vs Thrust Bearing: What Are the Differences

Bearings play a critical role in machinery by supporting rotating parts, reducing friction, and ensuring smooth movement. Among the various types of bearings, journal bearings and thrust bearings are commonly used, each serving a distinct purpose in mechanical applications. In this guide, we’ll explore the differences between journal bearings and thrust bearings, including their construction, applications, and advantages.

What Is a Journal Bearing?

A journal bearing is a type of plain bearing that supports a rotating shaft by allowing it to spin within the bearing. Journal bearings consist of a shaft (also known as a journal) that rotates within a bearing surface. These bearings are often lubricated with oil to create a thin film between the shaft and the bearing surface, which helps minimize friction and wear.

Journal bearings are primarily designed to handle radial loads, which are forces acting perpendicular to the shaft. They are commonly used in high-speed applications where smooth, continuous rotation is essential. Examples include engines, turbines, and other machinery where reducing friction is crucial for efficiency and longevity.

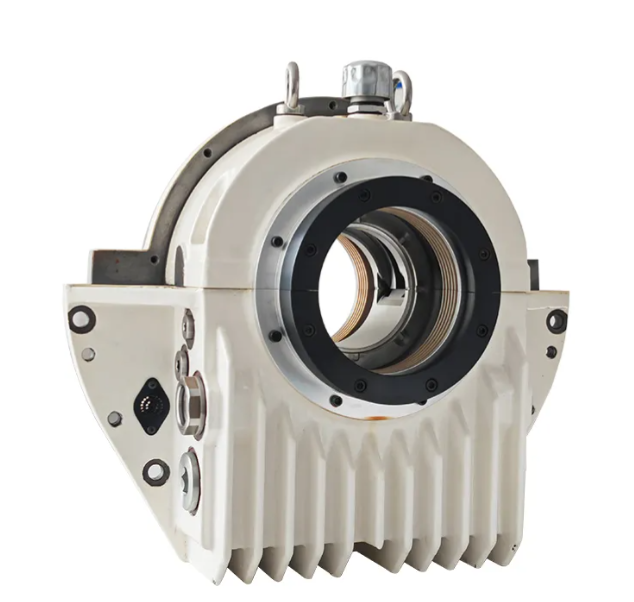

Journal Bearing

What Is a Thrust Bearing?

A thrust bearing is designed to support axial loads, or forces that act parallel to the shaft. Unlike journal bearings, thrust bearings keep the shaft in position along its axis, preventing it from moving or shifting horizontally. Thrust bearings often contain rolling elements, such as balls or rollers, to reduce friction under axial loads and maintain stability.

Thrust bearings are widely used in applications where shafts need to withstand high axial loads, such as in automotive transmissions, aircraft engines, and pumps. They ensure that the shaft does not experience unwanted axial movement, which is especially important in machinery with heavy loading and directional forces.

Pump Thrust Bearings

Key Differences Between Journal and Thrust Bearings

While journal and thrust bearings both support rotating parts, they differ in terms of load direction, construction, and application:

• Load Direction: Journal bearings support radial loads (perpendicular to the shaft), while thrust bearings support axial loads (parallel to the shaft).

• Construction: Journal bearings typically have a plain surface lubricated by oil, whereas thrust bearings often contain rolling elements (balls or rollers) to reduce friction under axial loads.

• Applications: Journal bearings are commonly used in engines, turbines, and high-speed machinery, while thrust bearings are suitable for applications like automotive transmissions and pumps where axial stability is essential.

Advantages of Journal Bearings

Journal bearings offer several benefits in applications where radial load support is needed:

• High Load Capacity: Journal bearings can support high loads when properly lubricated, making them suitable for heavy-duty applications.

• Minimal Maintenance: With proper lubrication, journal bearings have low wear and require minimal maintenance.

• Smooth Operation: These bearings offer smooth, quiet operation, which is ideal for applications requiring continuous rotation.

Advantages of Thrust Bearings

Thrust bearings are ideal for applications where axial load support is necessary. Key advantages include:

• Axial Load Support: Thrust bearings are designed specifically to support axial loads, keeping the shaft in position along its axis.

• Reduced Friction: With rolling elements, thrust bearings reduce friction under axial forces, making them suitable for applications where directional stability is important.

• High Precision: Thrust bearings provide precise axial positioning, ensuring stability in machinery where exact alignment is required.

Comparing Maintenance and Lubrication Needs

Maintenance and lubrication are essential to prolong the lifespan and efficiency of both journal and thrust bearings:

• Journal Bearings: These bearings rely heavily on lubrication to form a thin film that reduces friction. Regular lubrication checks are necessary, and oil circulation systems are often used in high-speed applications to keep journal bearings properly lubricated.

• Thrust Bearings: Thrust bearings also require lubrication, but they are less dependent on it than journal bearings due to their rolling elements. Periodic lubrication is necessary to reduce wear, especially in applications with high axial loads.

FAQs About Journal and Thrust Bearings

Q: Can journal bearings handle axial loads?

A: Journal bearings are primarily designed to handle radial loads. While they can tolerate minor axial loads, thrust bearings are better suited for handling significant axial forces.

Q: Are thrust bearings suitable for high-speed applications?

A: Thrust bearings can work in high-speed applications, but they are more commonly used where axial stability is crucial. Journal bearings are typically preferred for high-speed rotating equipment due to their smooth, continuous operation.

Q: How does lubrication impact bearing performance?

A: Lubrication is vital for both types of bearings. In journal bearings, lubrication forms a film that minimizes metal-to-metal contact, reducing friction. For thrust bearings, lubrication helps reduce friction in the rolling elements, extending bearing life and performance.

Q: Can journal and thrust bearings be used together?

A: Yes, in some applications, both types of bearings are used together to support both radial and axial loads. This combination is common in machinery where multidirectional stability is required.

Conclusion

Journal and thrust bearings serve unique functions in mechanical applications. While journal bearings are best for radial load support in high-speed applications, thrust bearings are ideal for stabilizing axial loads in machinery that experiences directional forces. Understanding the differences between these two bearing types helps ensure the proper selection for your machinery’s needs, enhancing efficiency, durability, and performance.
